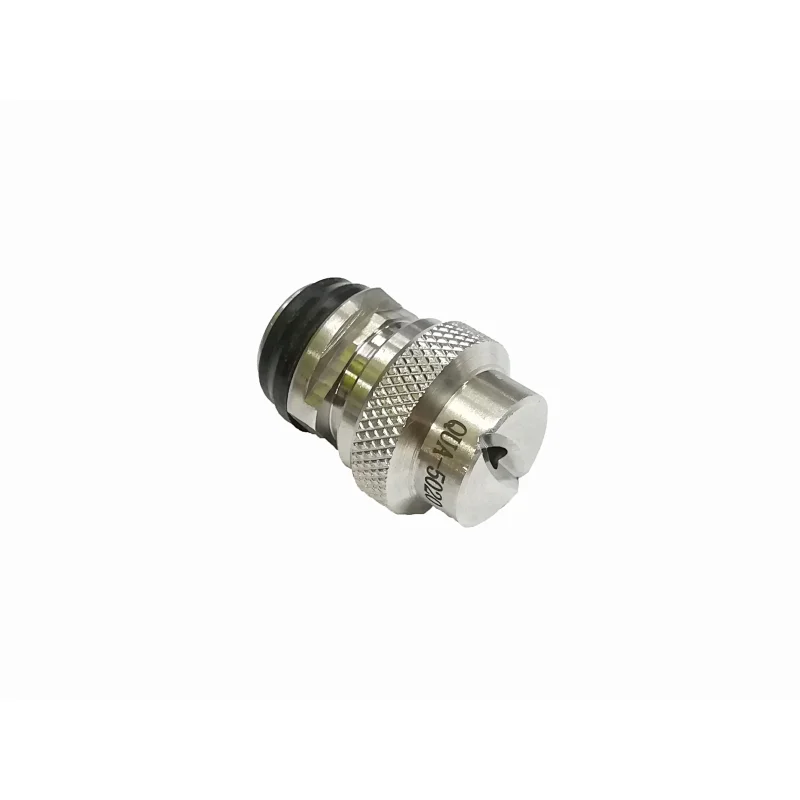

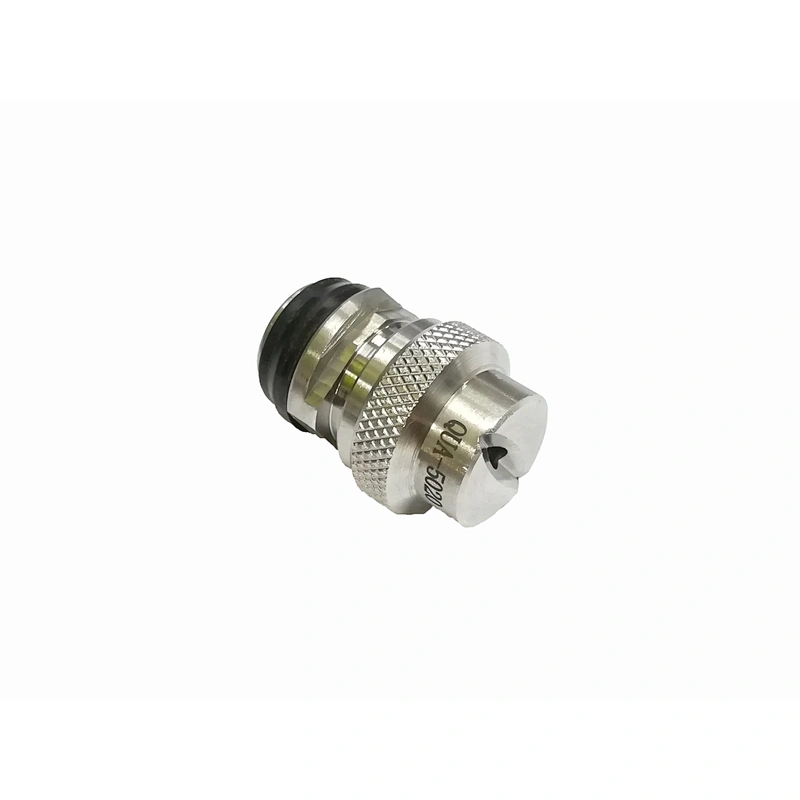

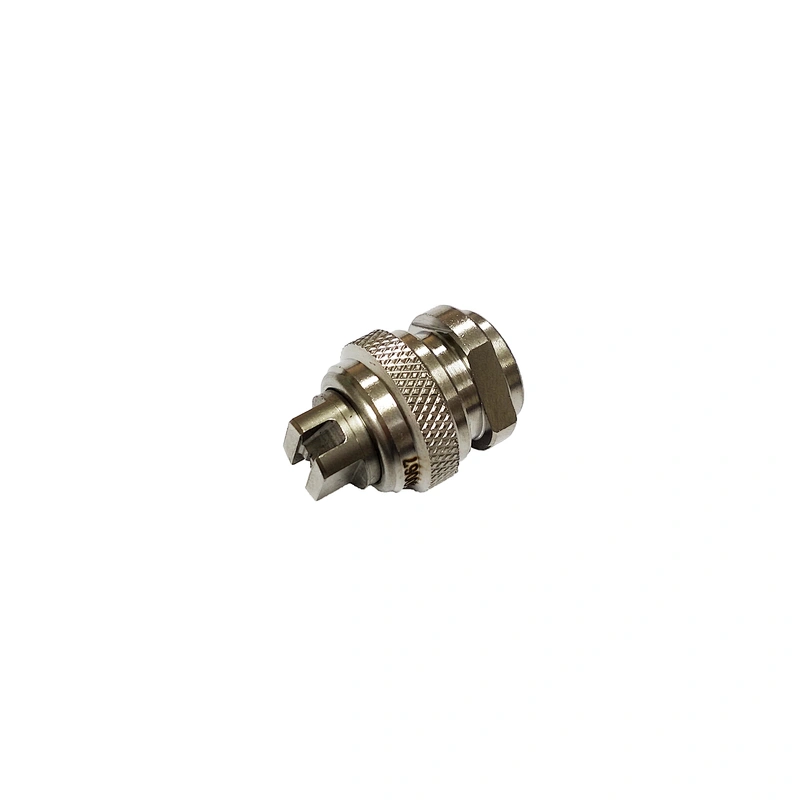

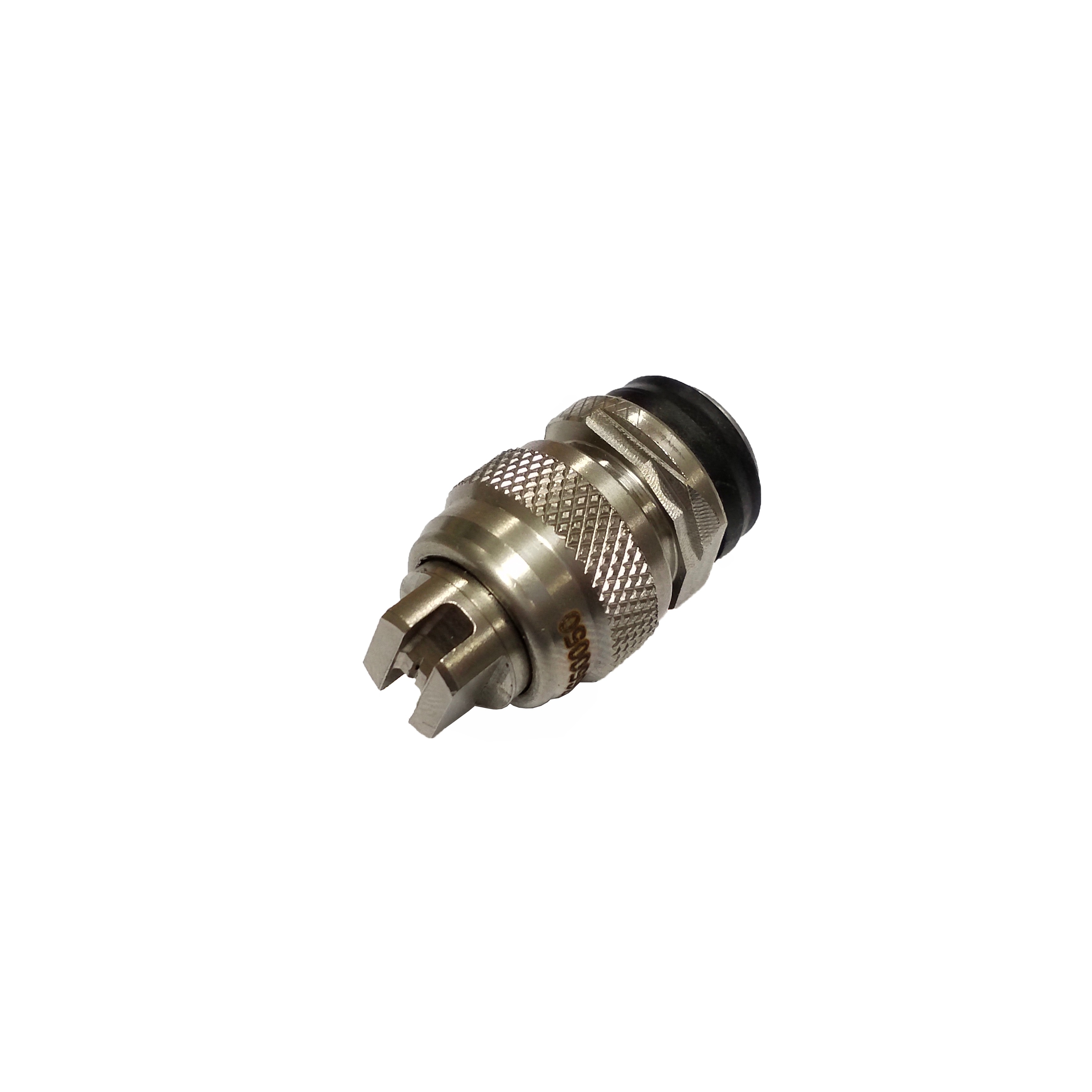

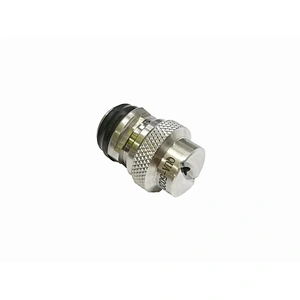

377 Quick-connected type

Model NO.: NS3774, NS3776
Delivery: FOB

Quantity:

Product Description

I. Introduction

Quick flat fan nozzle sprays a fan-shape pattern with uniform distribution, miniature versions are ideal when smaller physical size that remains weight are important.

Quick flat fan nozzleassemblies: Nozzle body, spray tip and optional external O-ring.

Features:

-NS377 Quick flat fan nozzle offersvarious interchangeable nozzles, materials,spray angles, and flow rates are at your disposal.

- Three-piece design with standard 303SS, 316SS and 316L materials and accessories allows for easy field replacement of nozzles.

- Reduce nozzle replacement expenses – the reusable main body only requires nozzle replacement.

- The nozzle produces a linear spraying effect, with spray angles ranging from 0° to 110°.

- Thread sizes range from 1/8"to 2", supporting both BSPT and NPT thread types.

- The spray angle remains stable, resulting in even distribution of liquid in a parabolic shape.

- Spraying pipes equipped with these nozzles demonstrate extremely uniform liquid distribution.

II. Application

Cleaning: filter cloth cleaning, parts cleaning, carwashing,metal cleaning and processing
Cooling: steel cooling, cooling of various products
Parts washing/rinsing
Pressure cleaning
Food processing

Send Message

Related Products

3811 (1/8" to 1/4" NPT or BSPT[M])

Model NO. NS3811

3851 (1/4" to 1/2" NPT or BSPT [M])

Model NO. NS3851

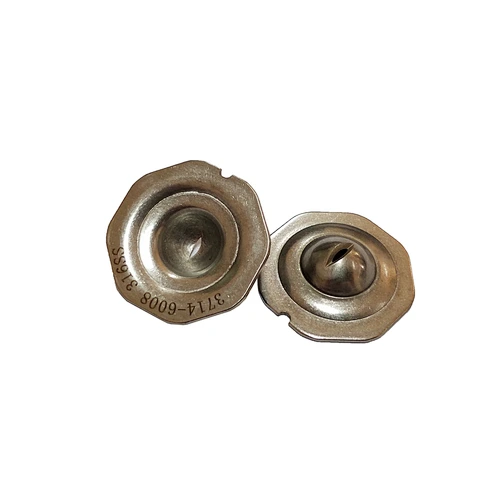

Disc fan nozzles

Model NO. NS3711, NS3712, NS3713...

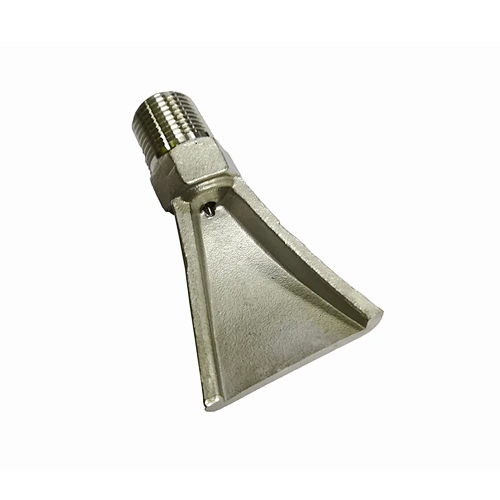

4195 (1/4" to 3/8" NPT or BSPT [M])
