Model NO.
NS1921, NS1923
Delivery:
FOB
Quantity:

I. Introduction

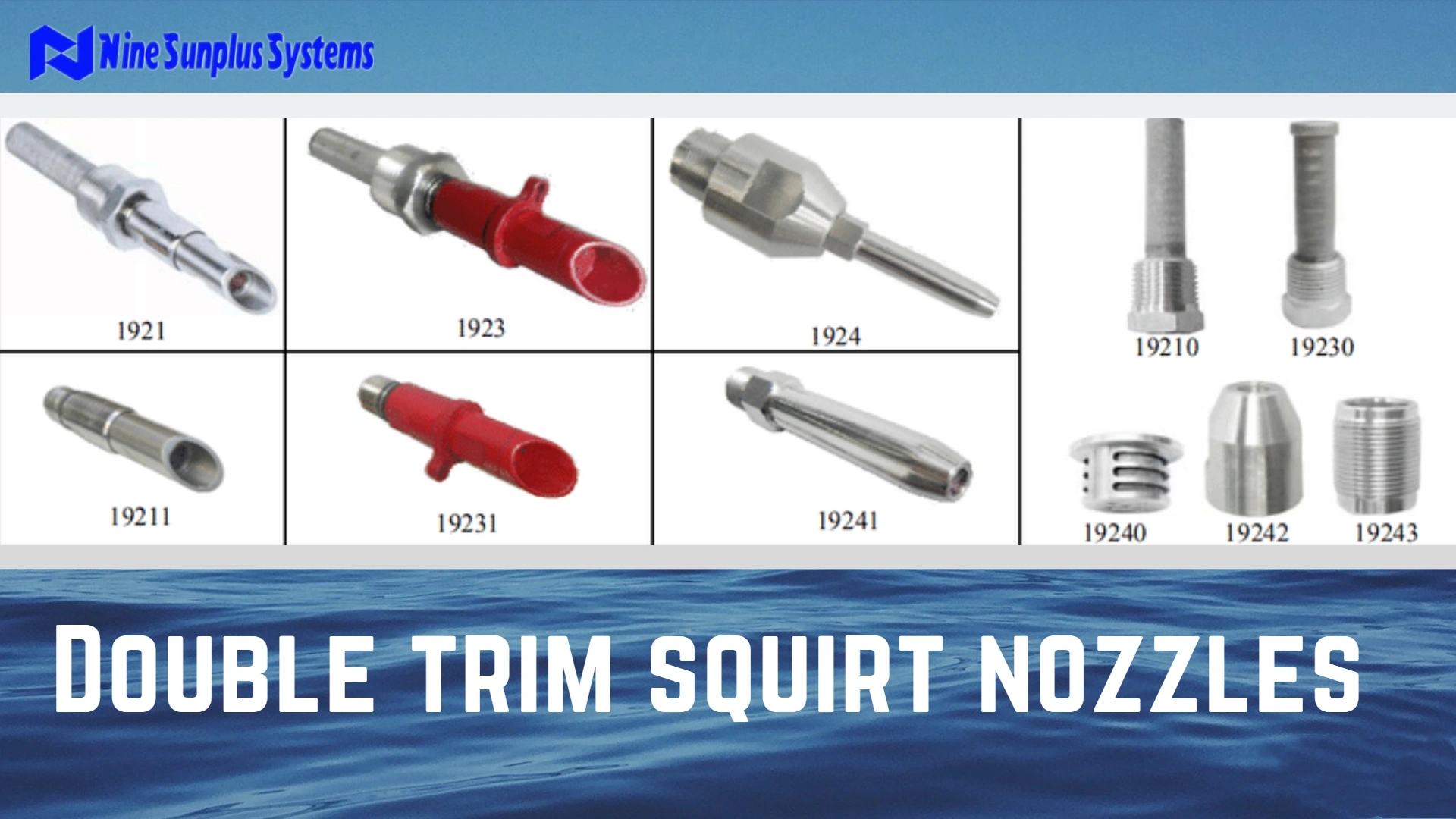

Double Trim Nozzles deliver two high pressure, high impact trim jets for the ultimate in quality edge trimming.

The double trim squirt nozzles is ideal in paper mills to cut and trim the sides of your paper web with a sharp edge, presice, clean and with no dust.

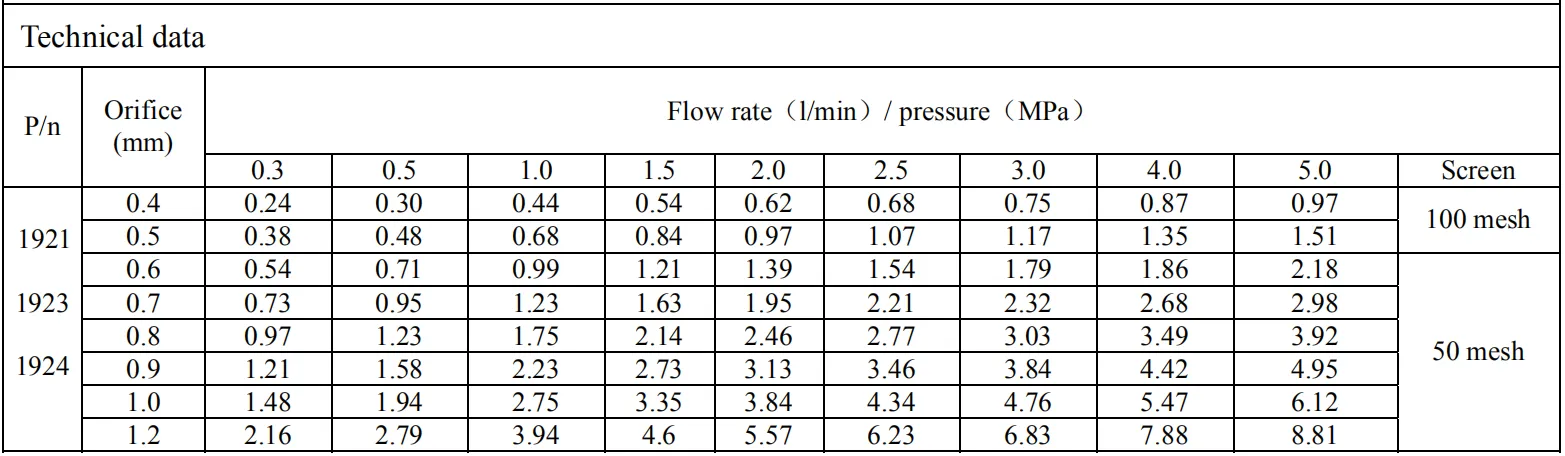

II. Technical Data
Body Material303SS, 316SS
Insert MaterialRuby,Tungsten Carbide
Tip Thread1/8'' NPT or BSPT, M10x0.75
Filter Thread3/8'' NPT or BSPT
Orifice Size0.4-1.0mm
Spray Pattern0° Solid Stream




III. Application

1. Net section Cleaning

2. Express Section Felt Cleaning

3. Roller Cleaning

4. Trim Nozzles

5. Shower Pipes Cleaning

6. Paper Cutting
