Model NO.:
NS1912, NS1914, NS1913...
Delivery:
FOB
Quantity:
I. Introduction

Single trim squirt nozzles can deliver single stream(a straight needle solid stream) at high pressure, which is mainly used for the trimming of the paper that supply a presice , clean cut.

II. Technical Data
Body MaterialBrass, 303SS, 316SS
Insert MaterialRuby, Tungsten Carbide, Ceramic
Tip Thread1/8'' NPT or BSPT, M10x0.75
Filter Thread3/8'' NPT or BSPT
Orifice Size0.4-1.0mm
Spray Pattern0° Solid Stream

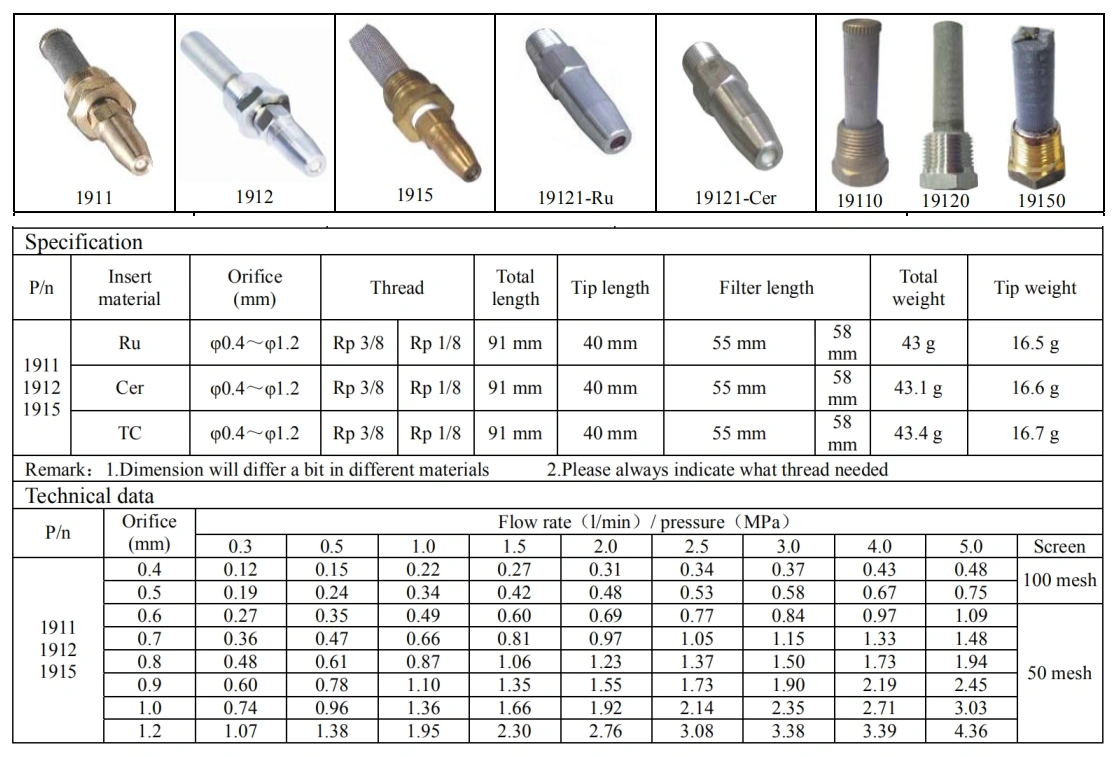

1. Data Sheet for 1911, 1912 and 1915 nozzles

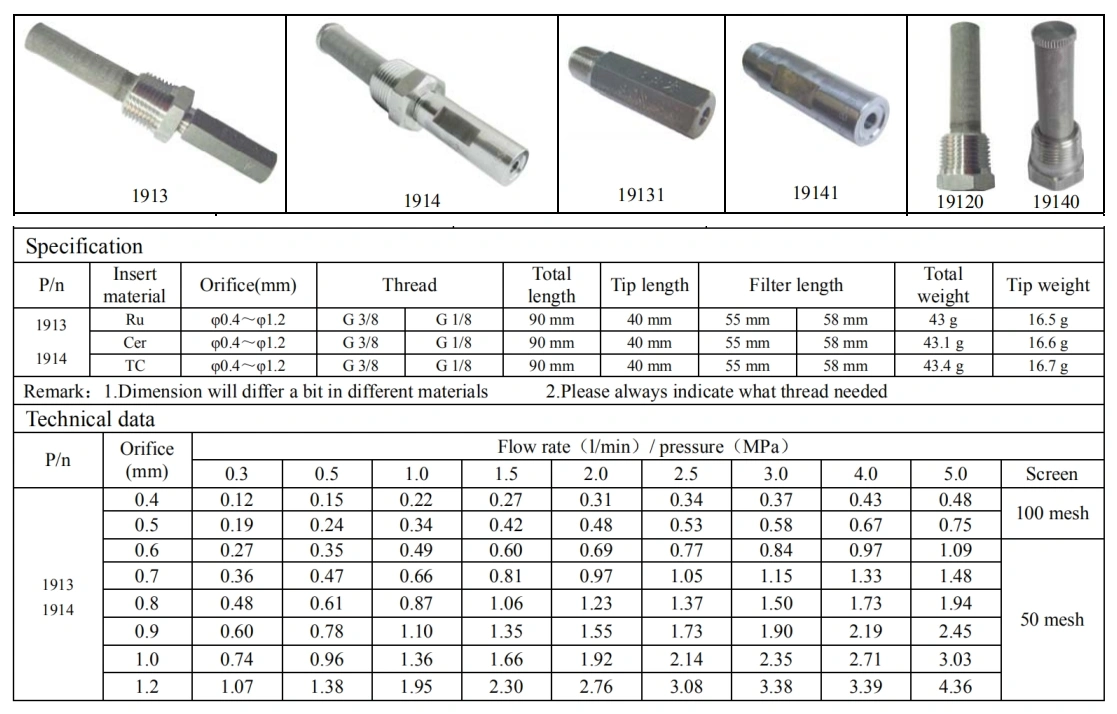

2. Data Sheet for 1913 and 1914 nozzles




III. Application

1. Net section Cleaning

2. Express Section Felt Cleaning

3. Roller Cleaning

4. Trim Nozzles

5. Shower Pipes Cleaning

6. Paper Cutting
