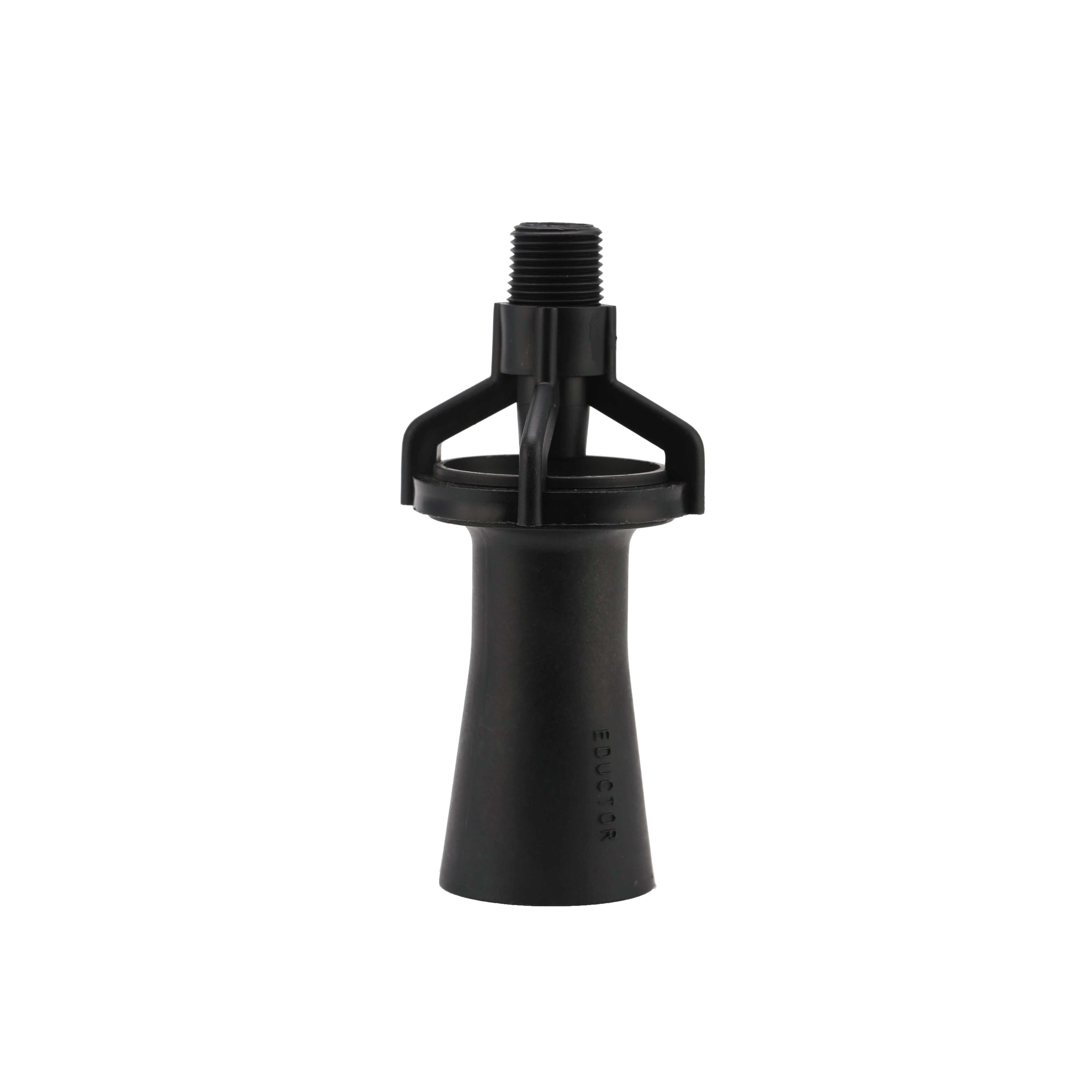

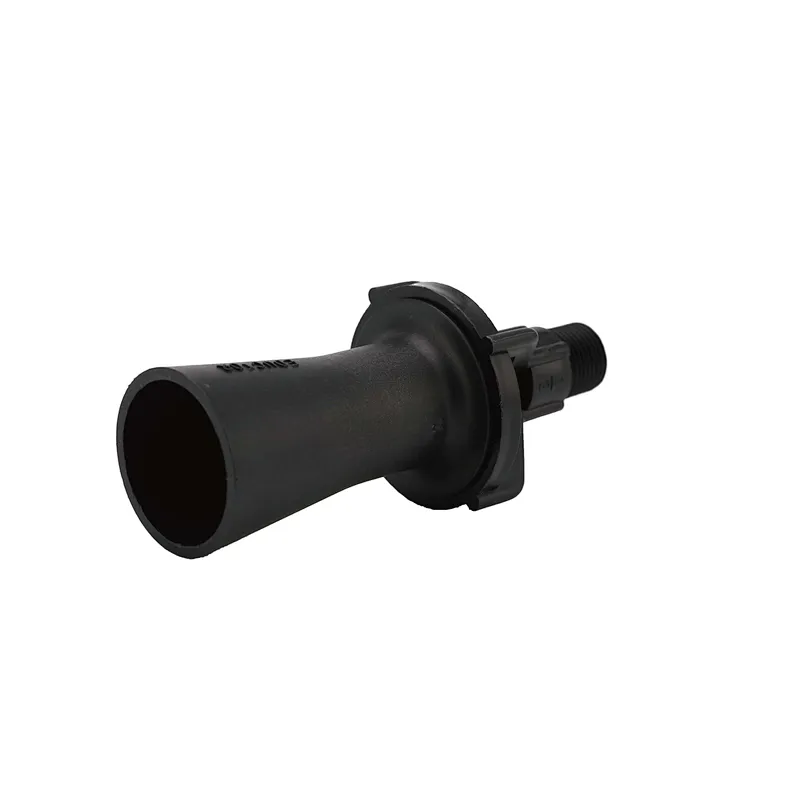

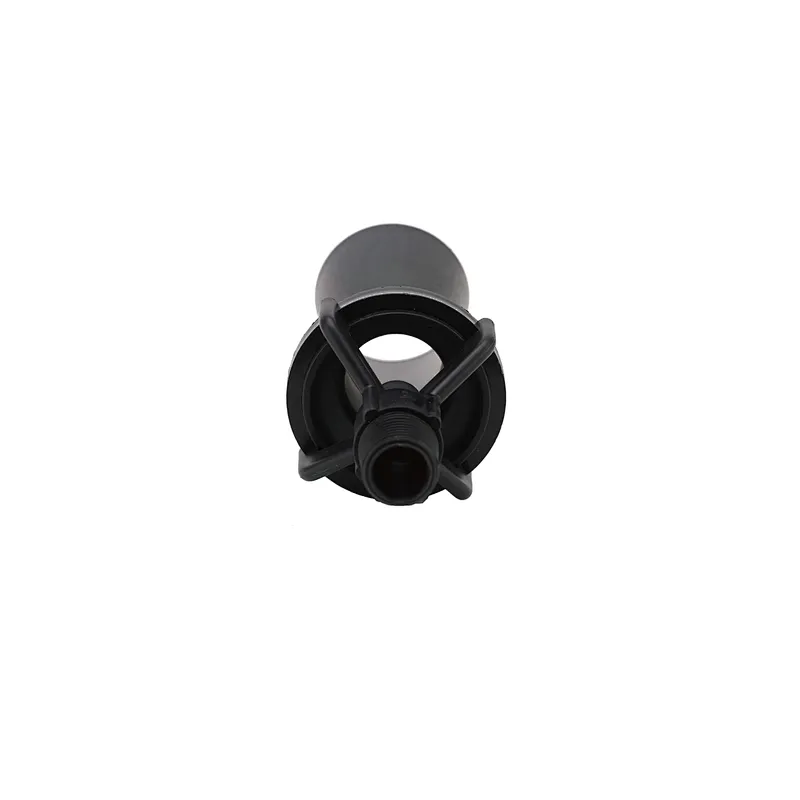

Tank Mixing Eductors (1/4" to 3/4" BSPT [M])

The tank eductor is designed with reasonable geometric surface parameters. The principle of eductors is that the fluid is sprayed from the conical nozzle at high speed, forming a low-pressure area around the eductors guide port, the high-speed working jet and the attracted liquid enter the mixed diffusion section together with 1:4 fluid delivery and spray out, so that the solution is mixed and stirred without air.

The tank mixing eductors are essential for ensuring thorough mixing and blending of the contents in a tank. Typically, these eductors are connected to a recirculating pump and submerged within the tank to keep the solution uniform and consistent.

NSS tank mixing nozzle are particularly innovative, using a unique venturi design that allows smaller pumps to effectively circulate large volumes of tank solution. This design feature is especially beneficial as it enables the eductor to circulate approximately four to five gallons of solution for every gallon that is pumped. This results in a highly efficient and rapid mixing process that saves both time and energy.

By leveraging the power of the venturi effect, NSS tank mixing nozzle offer an effective solution for maintaining tank homogeneity in various applications, from industrial processing to agricultural uses.

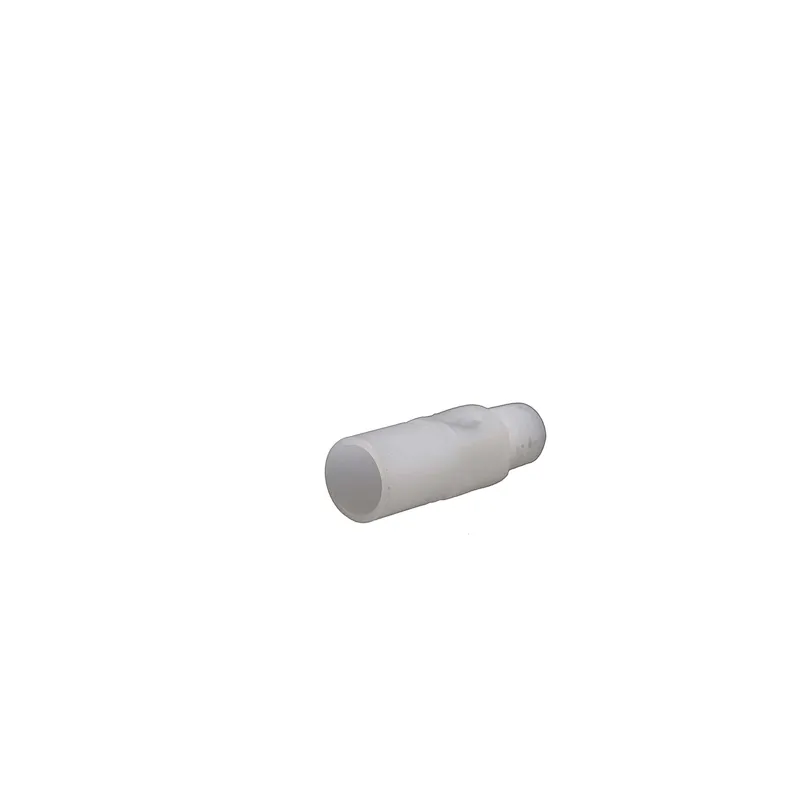

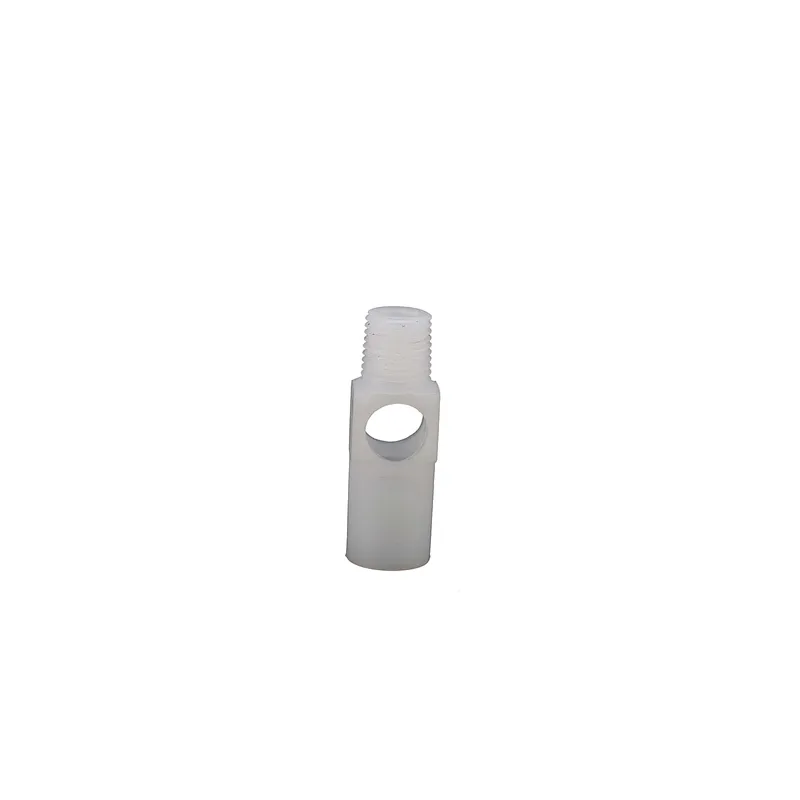

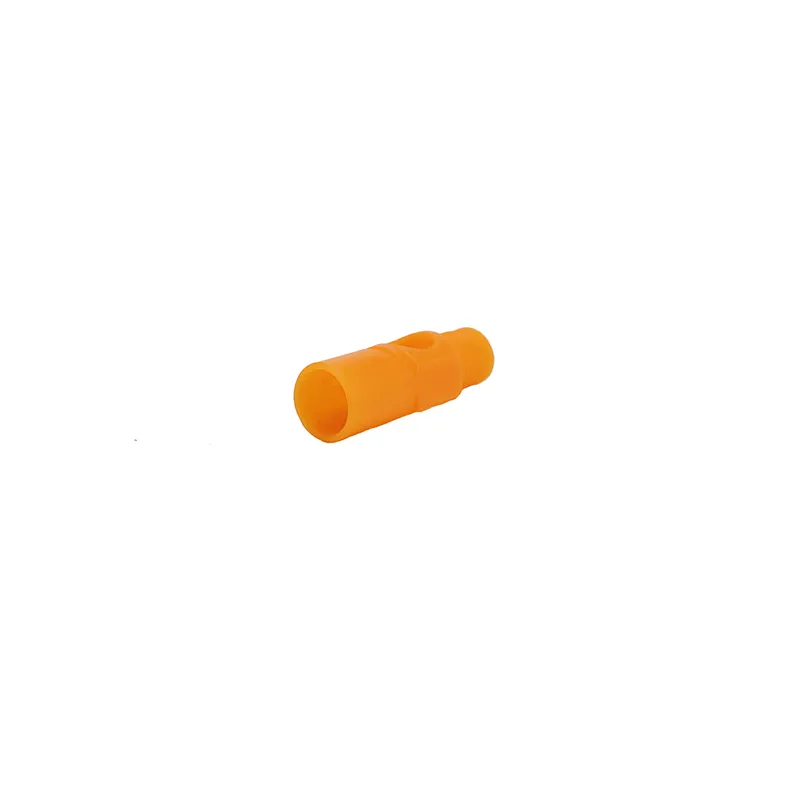

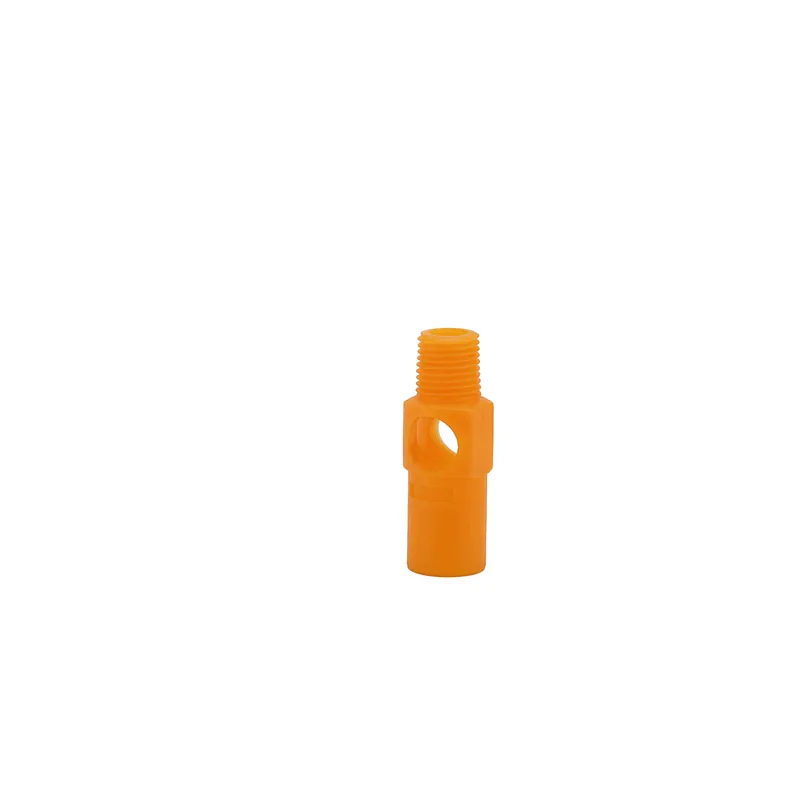

Tank mixing eductores made in PP, 304SS, 316SS, with sizes 1/4"to 3/4", or even larger sizes.
