Maximum free passage full cone (hollow cone) nozzle

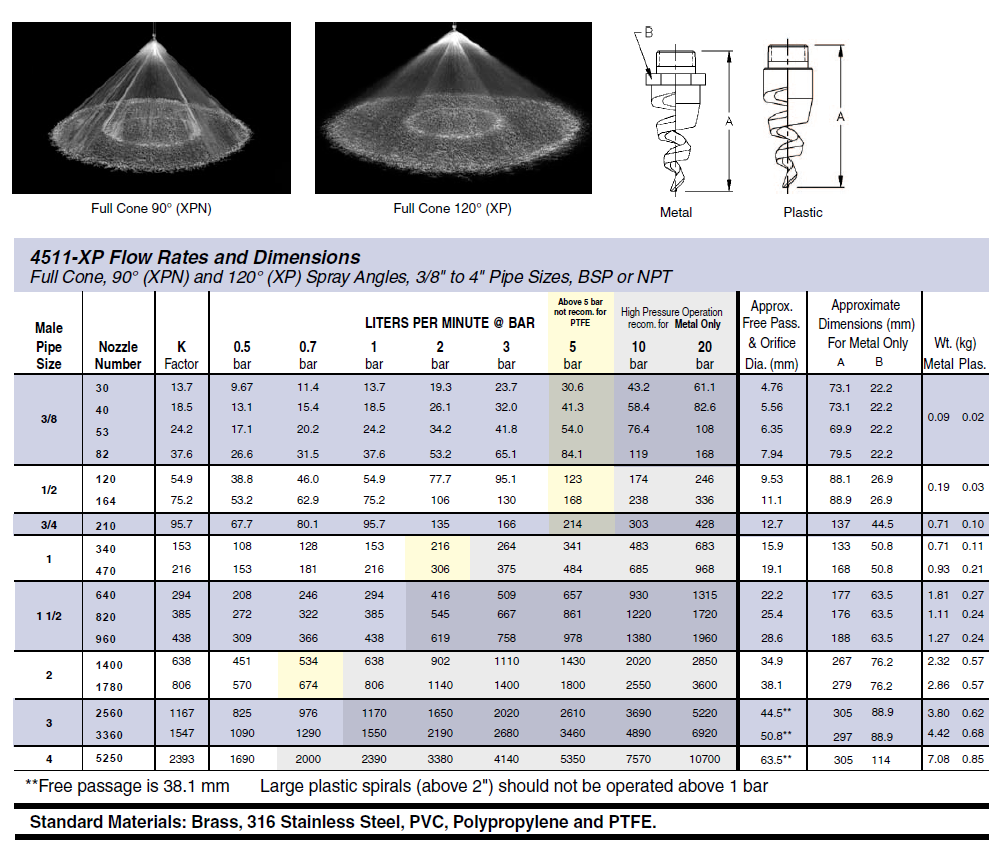

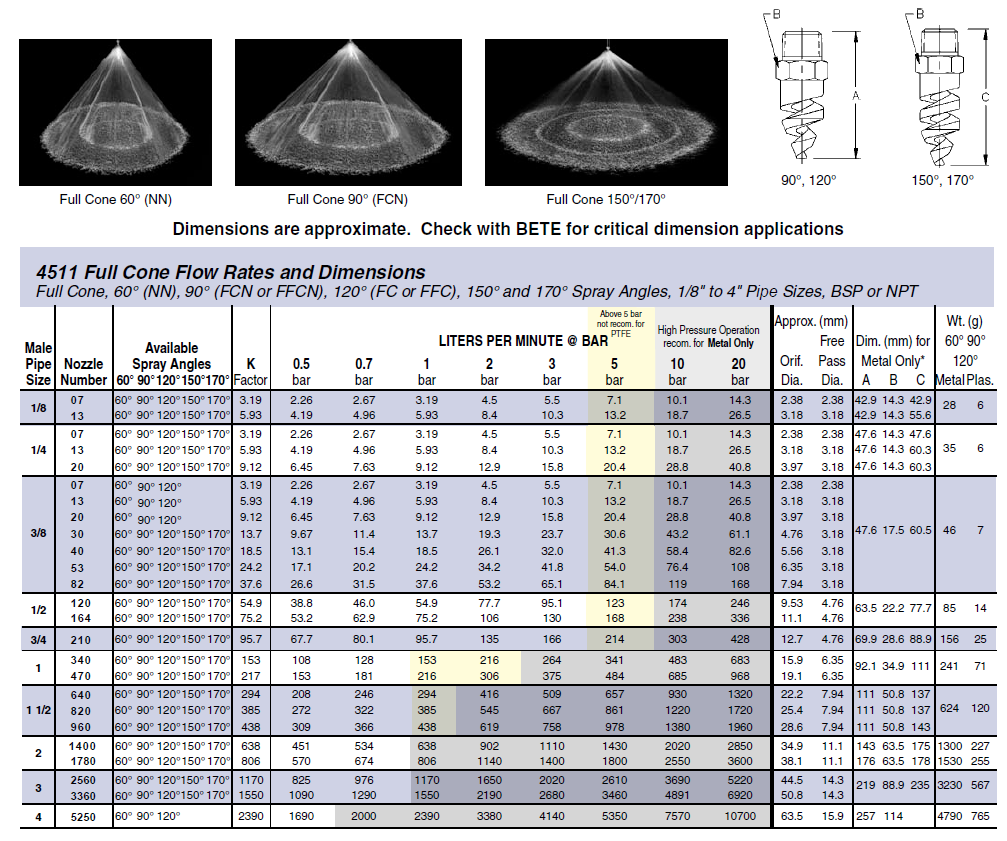

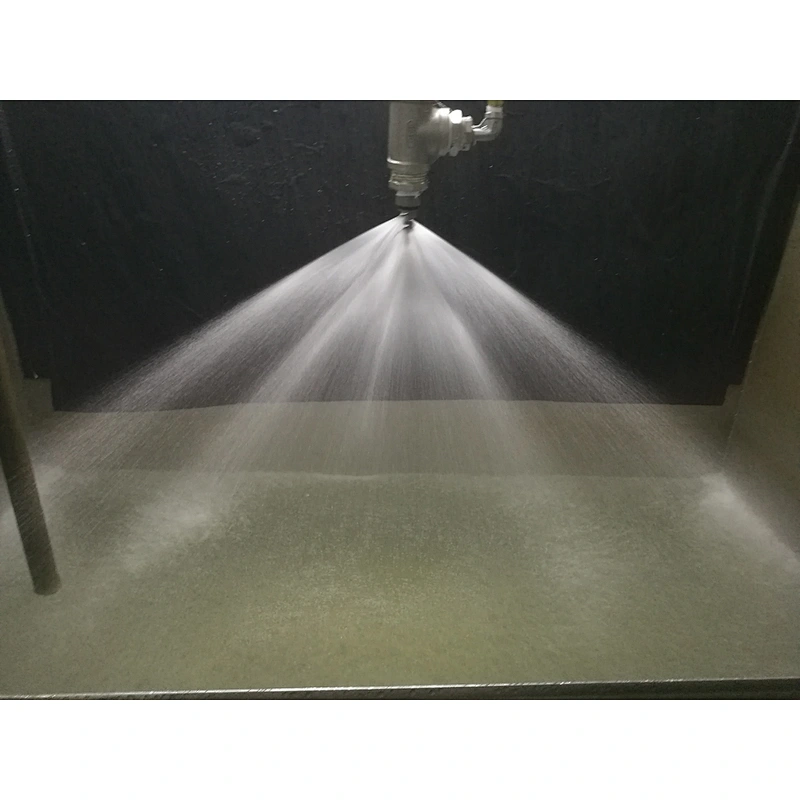

The spiral jet nozzle is a versatile spray nozzle that offers two distinct spray patterns: hollow cone and full cone. These patterns are available in angles ranging from 60° to 170°, allowing for a wide range of applications. The maximum free passage designs of spiral jet nozzle minimize clogging.

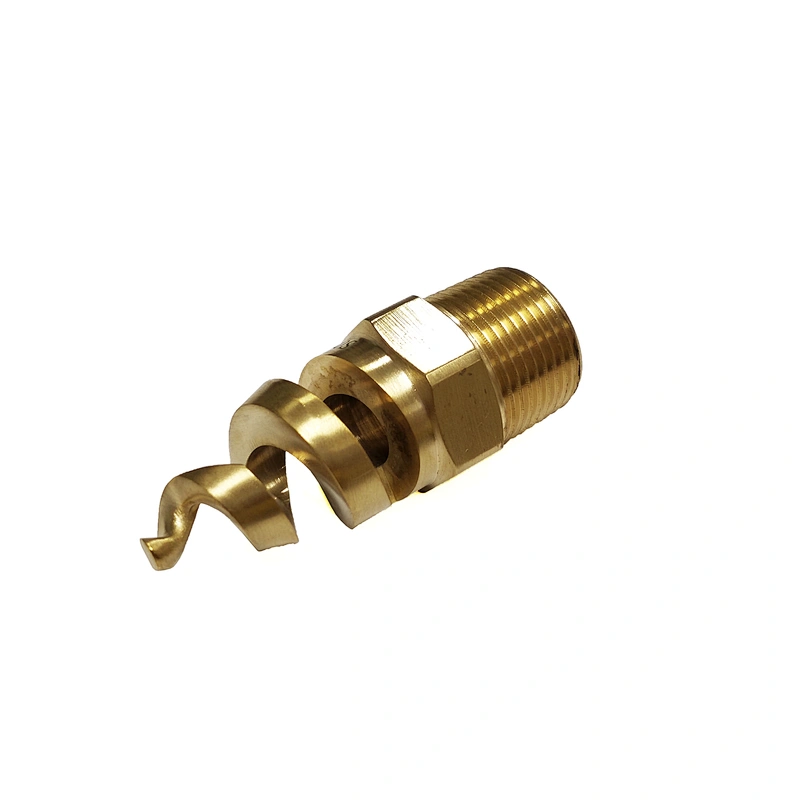

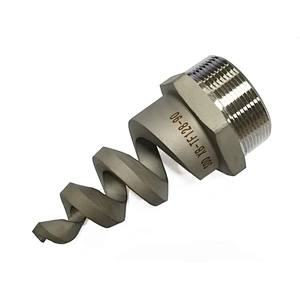

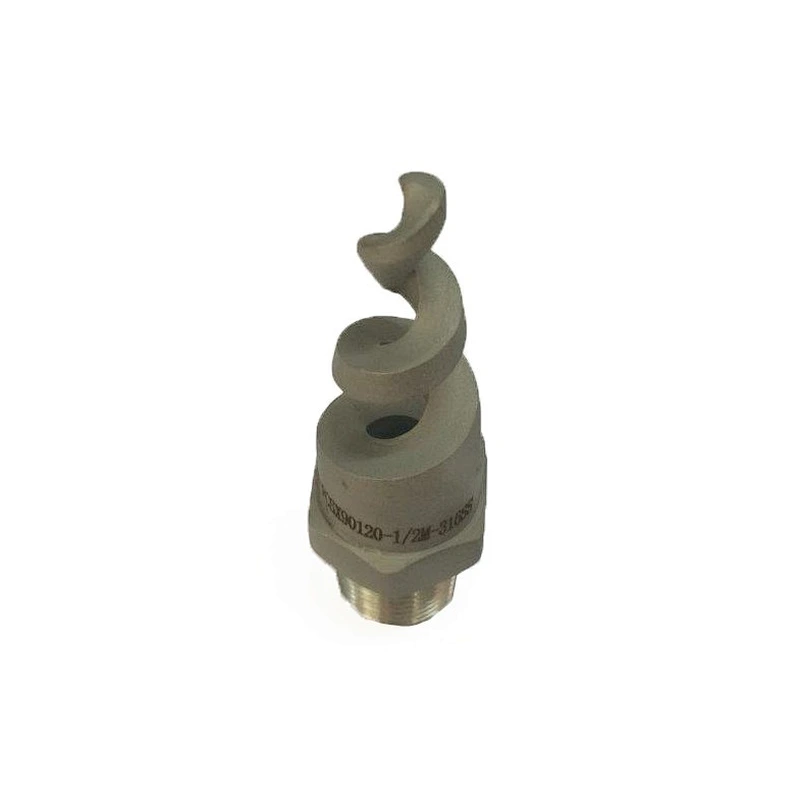

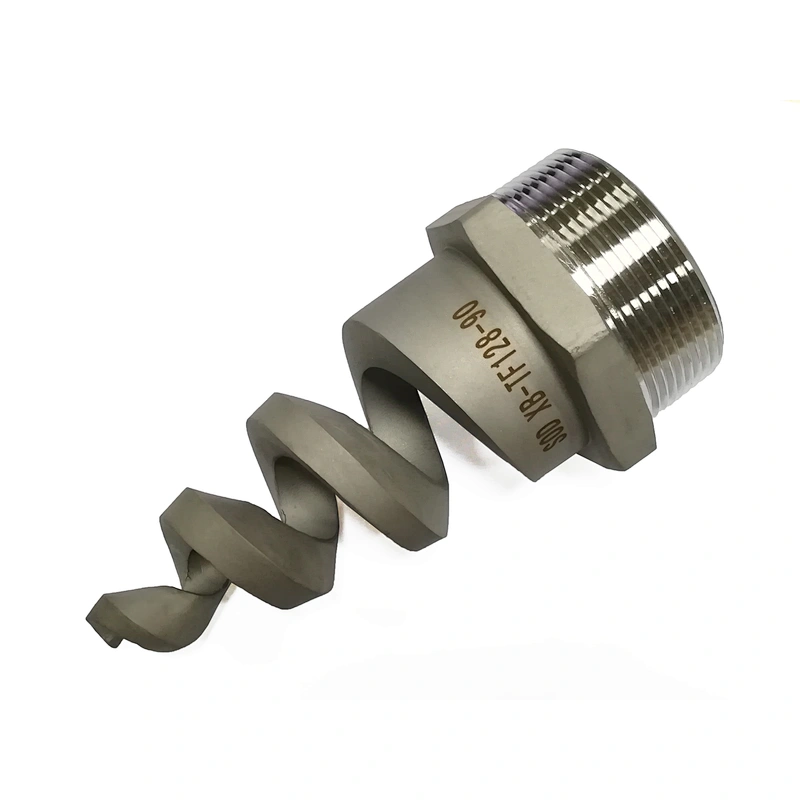

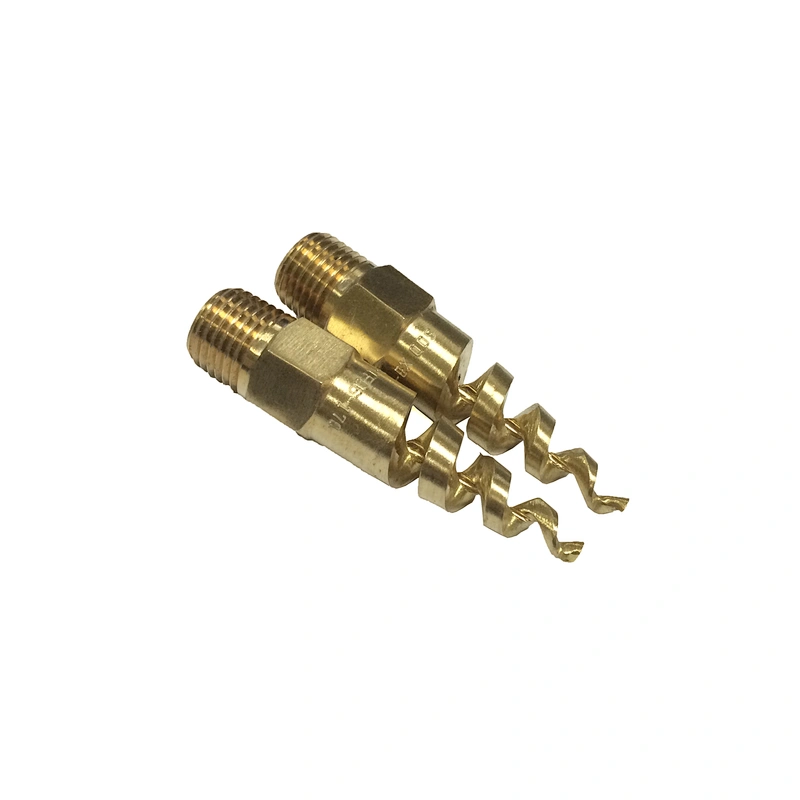

Spiral cone spray nozzle can be constructed from various materials such as stainless steel, brass, plastic, and silicon carbide, making it suitable for use in different environments and with various substances.

One of the key advantages of the spiral jet nozzle is its lower liquid chock risk, which makes it an ideal choice for applications such as gas cooling and gas scrubbing. Its unique design allows for efficient and effective performance in these and other applications.

• Exhaust gas scrubbing, including ship gas scrubbing, and flue gas scrubbing.
• Gas cooling
• Washing and rinsing
• Fireproofing and fire extinguishment
