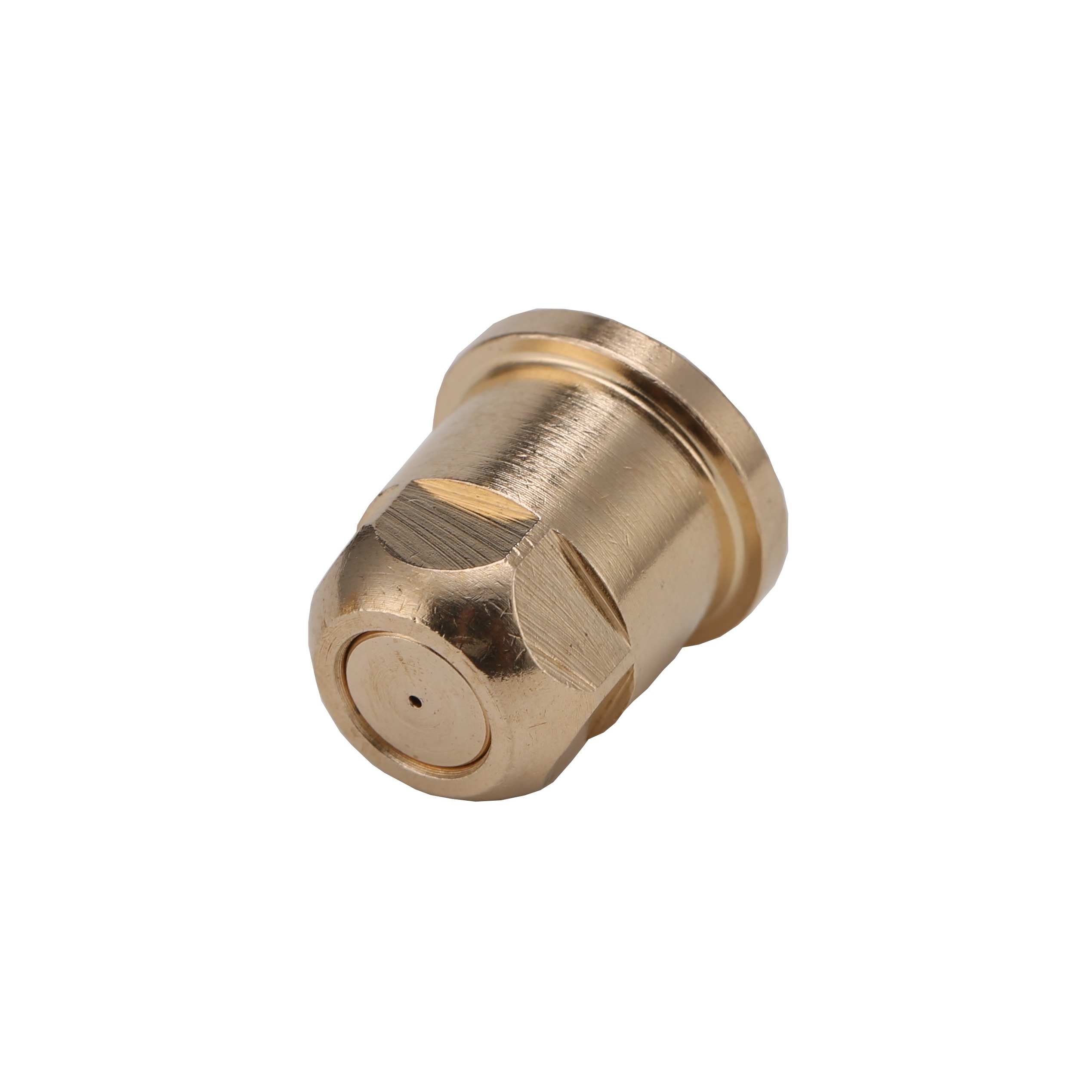

42752-Hollow cone spray pattern

The quick-connect hollow cone nozzle tips are designed to minimize maintenance time and costs in spraying systems. These hollow cone nozzles have a body that stays on the pipe or header during tip replacement, reducing maintenance time. The quick-connect design allows for reusing the bodies, with only the spray tips needing replacement, resulting in substantial cost savings.

These nozzles create a hollow cone spray pattern with a circular impact area, ensuring even distribution of spray and offering excellent atomization at low pressures for various applications. The spray angles available range from 13° to 114° for standard models and 130° to 140° for wide-angle models, providing flexibility to suit different spraying needs.

The Quick-connect hollow cone nozzle tips ensure uniform spray distribution across a flow rate range from 13.2 to 17,760 liters per hour. They can operate at pressures up to 25 bar, guaranteeing effective and consistent performance.

Additionally, these hollow cone nozzles are designed with maintenance ease in mind. The orifice inserts, cores, and strainers can be easily removed for inspection or cleaning, further reducing the time and effort required for maintenance.
