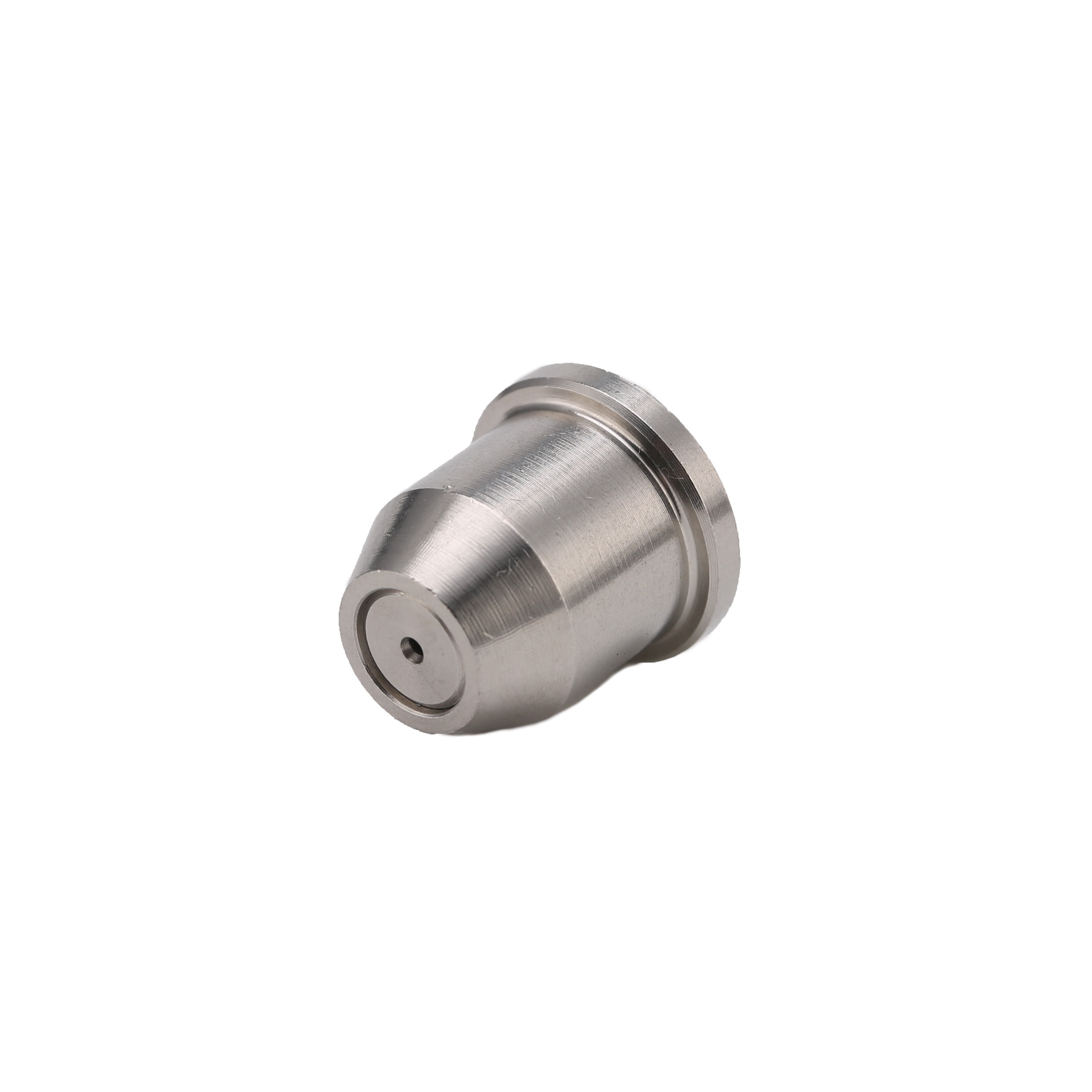

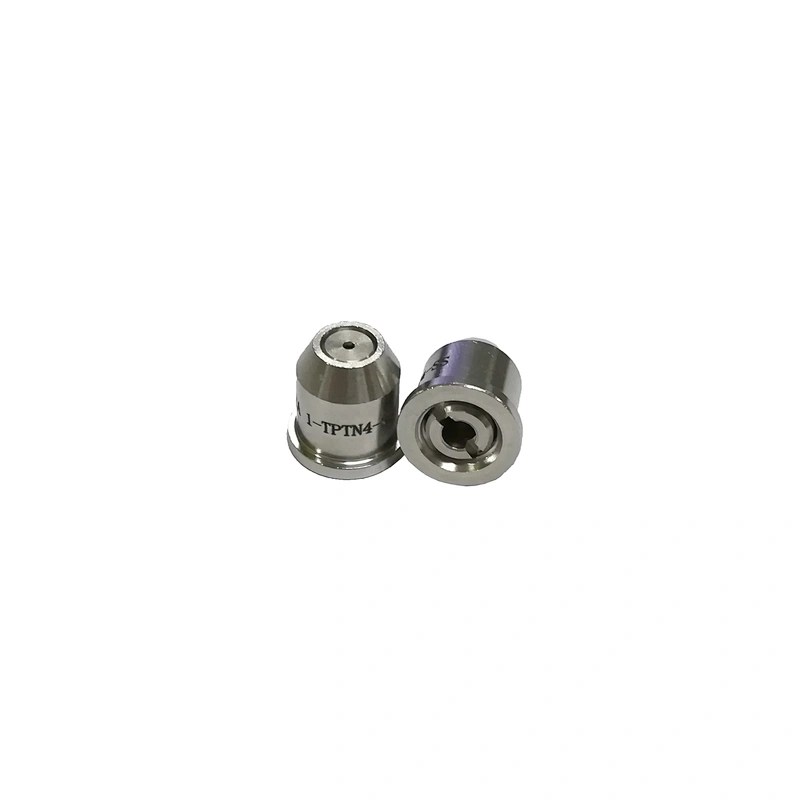

42732-Very fine atomized sprays in a hollow cone spray pattern

The quick-connect hollow cone nozzle tips are designed for efficient and convenient use in spraying systems. They reduce maintenance time by allowing bodies to remain on the pipe or header during tip replacement, making the process more streamlined. Additionally, they offer cost savings as the bodies are reusable, with only the spray tips needing replacement and can fit onto either male or female bodies.

These nozzles produce a hollow cone spray pattern with a circular impact area, ensuring an even distribution of spray. They are capable of providing very fine atomized sprays using liquid pressure alone, eliminating the need for compressed air. This feature makes them suitable for applications where a delicate and uniform spray is required.

The Quick-connect Hollow Cone Nozzle Tips offer standard spray angles ranging from 43° to 91°, providing flexibility to suit various spraying needs. They ensure uniform spray distribution across a flow rate range from 3.1 to 701 liters per hour, making them versatile for different application requirements.

These nozzles can operate at operating pressures up to 140 bar, guaranteeing effective and consistent performance even in high-pressure systems. Additionally, the orifice inserts, cores, and strainers can be easily removed for inspection or cleaning, further reducing the time and effort required for maintenance.
