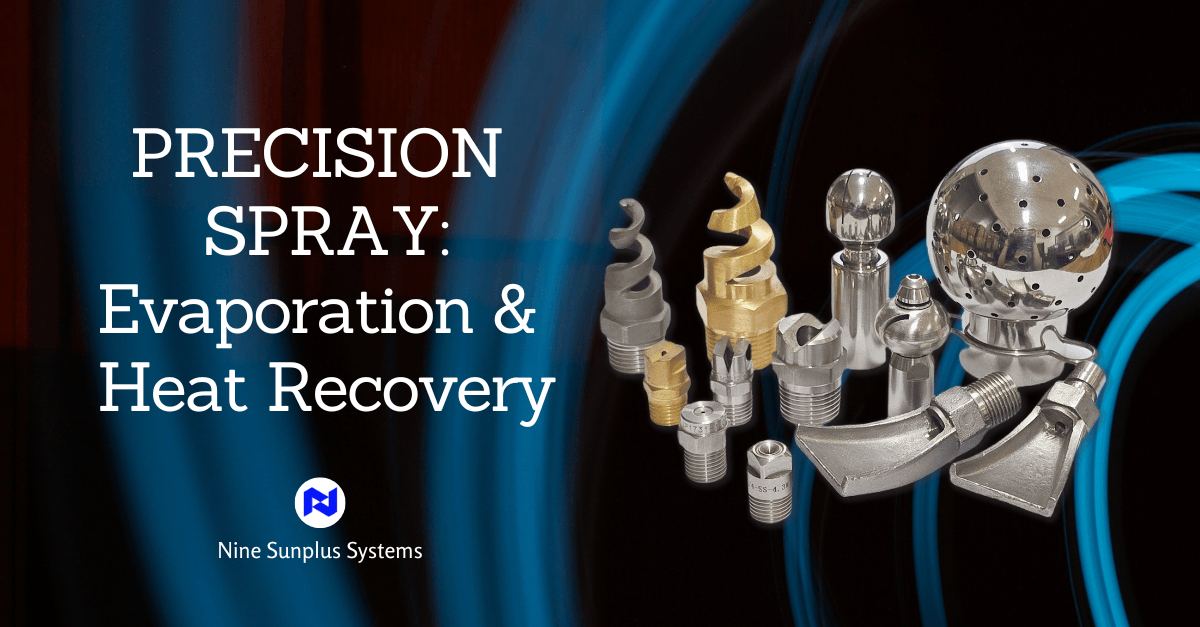

In the pulp and paper industry, energy efficiency and process optimization are key drivers of competitiveness and sustainability. Among the critical systems in a paper mill are the evaporation system, which concentrates black liquor, and the heat recovery system, which reclaims thermal energy from exhaust gases or condensates. Spray nozzles play a vital yet often overlooked role in both of these systems, enhancing their performance, reliability, and operational cost-efficiency.

Spray Nozzles in Evaporation Systems

The black liquor evaporation system is designed to increase the solids content of spent pulping liquor, preparing it for combustion in the recovery boiler. Spray nozzles are used in several key areas:

1- Black Liquor Atomization
High-performance solid cone or pressure atomizing nozzles are used to disperse black liquor into fine droplets within the evaporator, increasing the surface area for efficient heat and mass transfer. These nozzles must resist corrosion, abrasion, and high temperatures—common in alkali-rich environments

2- Evaporator Cleaning
To prevent scaling and fouling on internal surfaces, rotating or fixed spray nozzles are used for Clean-In-Place (CIP) operations. These nozzles deliver high-impact or full-coverage spray patterns, helping maintain heat transfer efficiency and reduce downtime.

Spray Nozzles in Heat Recovery Systems

Heat recovery systems capture residual thermal energy from hot exhaust gases or condensate streams, and spray nozzles are essential to this process:

1- Flue Gas Cooling
Fine misting or hollow cone nozzles are applied in gas cooling sections to reduce gas temperature before it enters heat exchangers or emission control equipment. Controlled droplet size ensures rapid heat absorption and evaporation without condensation damage.

2- Scrubber Spray Systems
In wet scrubbers or wash towers, spiral or full cone nozzles disperse water or chemicals to remove particulates and recover heat. Anti-clogging designs and corrosion-resistant materials are critical in these high-load environments.

3- Condensate Spraying
In systems using condensate recovery, fan or full cone nozzles help distribute water evenly over heat exchange surfaces, maximizing heat reclaim efficiency.

Key Nozzle Requirements for Pulp & Paper Applications

• Material Durability: Stainless steel (316L), Hastelloy, ceramic tips, or PVDF depending on media and temperature.
• Spray Pattern Consistency: For uniform coverage and effective interaction with target surfaces or gases.
• Anti-Clogging Design: Especially important in fiber-laden or high-solids environments.
• Easy Maintenance: Quick-connect designs reduce downtime during nozzle replacement or cleaning.

Although often small in size, spray nozzles are integral to the reliable and efficient operation of evaporation and heat recovery systems in the pulp and paper industry. By choosing the right nozzles for each process, mills can improve thermal efficiency, reduce cleaning frequency, and optimize system uptime. As environmental standards tighten and energy costs rise, high-performance spray solutions will play an even greater role in modern papermaking operations.
