Disc Nozzle Design Guide: Shape Types, Functional Features & Selection Tips

Disc nozzles are key components in many industrial spray systems, from food processing to chemical cleaning. Despite their small size, their structural design directly affects spray accuracy, installation ease, and long-term performance. This guide compares common disc nozzle shapes, examines their functional features, and offers practical recommendations to help you select the ideal model for your application.

Disc Nozzle Shape Comparison

Below is a quick comparison of the most commonly used disc nozzle designs:

What Is the “Step” Design and Why It Matters

Some disc nozzles, especially those used in internal spray bars with self-cleaning brushes, feature a raised “step” on the mounting surface.

Function:

• Increases contact area between brush and nozzle
• Enhances cleaning efficiency
• Reduces clogging and extends nozzle lifespan

This step design is ideal for spray systems that require frequent internal cleaning or operate with fluids that are prone to residue.

How to Choose the Right Disc Nozzle Design

Here are some practical guidelines based on typical usage:

• Standard spraying tasks: Choose hexagonal or octagonal types for a balance of performance and cost-efficiency.
• Precise and repeatable spray angles: Opt for nozzles with single or double positioning holes, especially in automated or directional-critical setups.
• Self-cleaning systems: Use nozzles with a step design to improve brush contact and minimize downtime.

Frequently Asked Questions (FAQs)

Q1: What spray patterns do disc nozzles produce?

Depending on the design, disc nozzles typically produce two main spray patterns:

Solid stream – A focused, high-impact liquid column ideal for precise cleaning, rinsing, or penetration.

Flat fan spray – A thin, fan-shaped spray pattern used for surface coverage, cooling, or coating applications.

Q2: Are disc nozzles suitable for high-pressure systems?

Most disc nozzles are designed for low to medium pressure applications. However, nozzles with reinforced bodies (e.g., stainless steel + ceramic or ruby inserts) can withstand higher pressure levels.

Q3: Can disc nozzles be cleaned or reused?

Yes. Stainless steel nozzles with ceramic or ruby inserts are highly durable and can be cleaned and reused. Self-cleaning systems with internal brushes further extend nozzle life and reduce maintenance.

Q4: Can disc nozzles be used with abrasive or viscous liquids?

Yes, but material selection is key. For abrasive or viscous fluids, we recommend disc nozzles with ceramic or ruby inserts.

Ceramic offers excellent wear resistance, and ruby inserts are ideal for low to medium viscosity fluids, offering a smooth internal surface to reduce clogging.

For very viscous or particle-laden liquids, a larger orifice size and proper filtration are recommended.

Q5: How often should disc nozzles be replaced?

It depends on the application and liquid type. In clean water systems, nozzles may last months or years. In abrasive or harsh chemical environments, more frequent inspection and replacement are recommended.

Q6: How can I ensure correct spray direction during installation?

Use nozzles with positioning holes to ensure accurate and consistent alignment. These are especially useful in automated setups. Manual types like hex or octagonal nozzles require careful hand alignment.

Need Help Choosing the Right Disc Nozzle?

Browse our full range of disc nozzles  here, or contact our technical team for tailored advice based on your application needs.

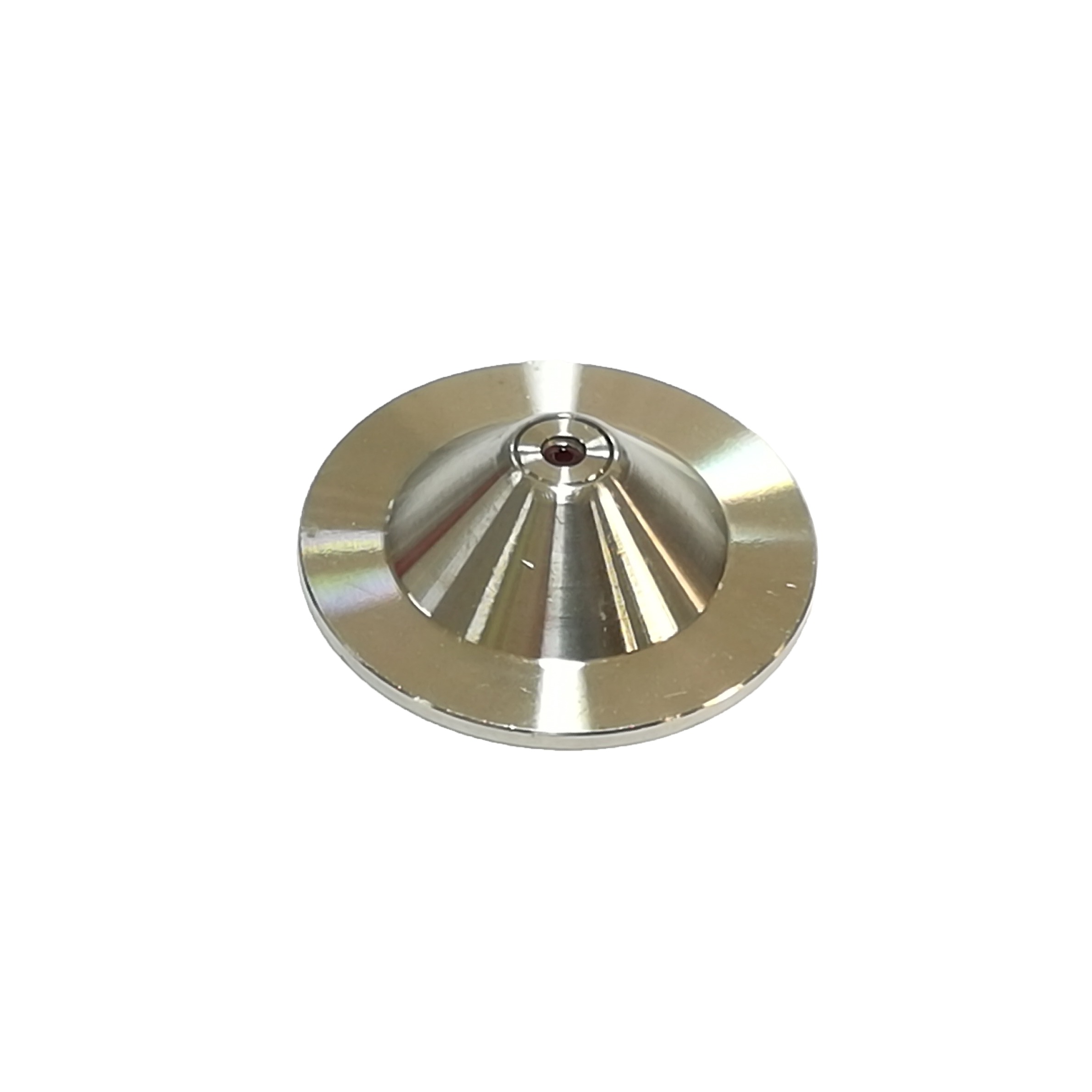

Disc fan nozzles
